High Transparency Platinum Cure Liquid Silicone Raw Materials
Model: Series G8 Mix Ratio: 1:1 or 10:1
Key Features:
- Crystal Clarity – High transparency for clear internal view.
- Superior Cushioning – Elastic body absorbs stress & vibration.
- Low Shrinkage – ≤0.1% shrinkage for precise replication.
- Wide Temp Range – Heat resistant up to 250°C for harsh environments.
Technical Specifications:
| ☆ Transparency: High Clarity | ☆ Cure Time: 3-5 hrs @RT |
| ☆ Heat Resistance: 250°C | ☆ Shrinkage: ≤0.1% |
Perfect For:
| ☆ Electronics & Electrical Potting | ☆ Precision Molds & Replication |
| ☆ Automotive & Transportation | ☆ Industrial & Special Applications |
- Overview
- Recommended Products
-
Automotive Electronics: Moisture & shock proof potting for ECUs, sensors, charging ports.
-
New Energy Equipment: Protection for BMS, solar inverters, EV charger modules.
- Industrial Electronics: Insulation & stress relief for PLCs, communication modules, power supplies.
-
Precision Casting Molds: Replication molds for jewelry, medical device prototypes, precision gears.
-
Craft & Art Molds: Production molds for high-end resin art, imitation glassware, souvenirs.
- Industrial Sample Molds: Rapid molds for product prototypes & small-batch trial production.
-
EV Core Components: Motor controllers, OBCs, DC-DC converters.
-
Traditional Auto Electronics: Engine/transmission control modules, body electronics.
- Outdoor Equipment: Potting for car navigation systems, dash cams, GPS terminals.
-
Energy Storage Batteries: Module potting for Li-ion packs, BMS protection.
-
Solar Equipment: Outdoor protection for solar controllers, micro-inverters.
- Charging Infrastructure: Internal potting for AC/DC charging piles.
-
Food Mold Making: FDA-compliant molds for chocolate, candy, baking.
-
Kitchenware Molds: Ice cube trays, cake decor molds, food packaging prototypes.
-
Safety Products: Encapsulation for baby products & medical devices requiring non-toxic certification.
-
Optical Device Encapsulation: Transparent potting for LED lenses, optical sensors.
-
Special Equipment Protection: Electronics in underwater, high-vibration, extreme-temperature environments.
- Repairable Potting: Facilitates later maintenance and component replacement.

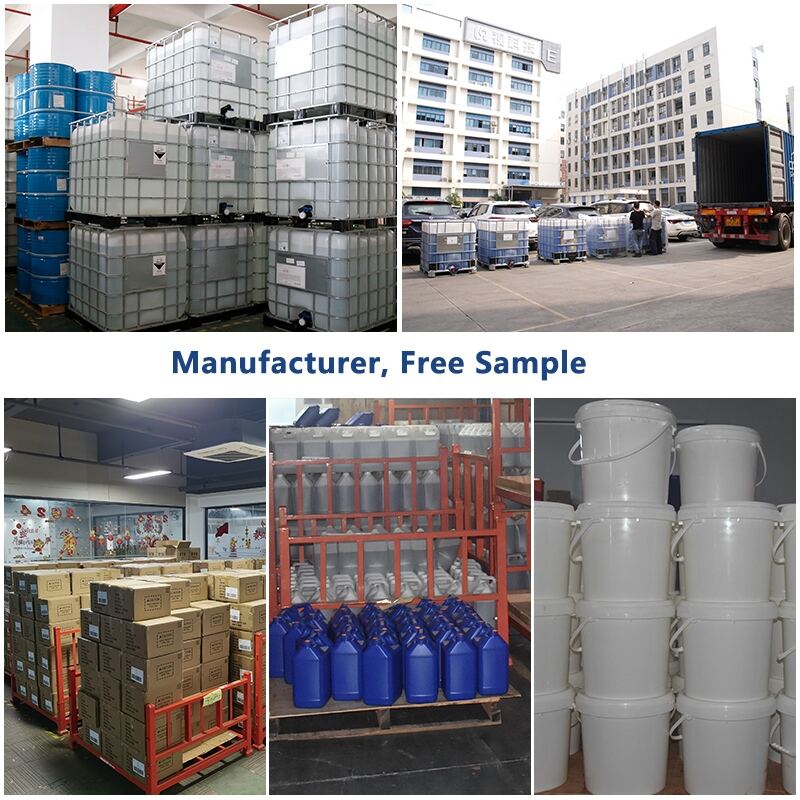

Professional Liquid Silicone Manufacturing Experts
Shenzhen Jianghe New Materials Technology Co., Ltd. is a leading developer and manufacturer of high-performance polymer materials, including epoxy resin, PU resin, UV resin, and liquid silicone rubber. As an integrated source factory combining R&D, production, and sales, we operate a 20,000㎡ modern production base in Dongguan, certified with ISO9001 and other international standards. Supported by advanced equipment, a dedicated R&D team, and a strict QC system, we deliver over 25,000 tons of stable, high-quality, and cost-effective products annually to clients in over 100 countries. We specialize in customized formulations and OEM/ODM services, empowering industries from crafts and furniture to electronics and composites with reliable material solutions.
Why Choose This Platinum Cured Liquid Silicone?
Highlight 1: Electronics-Grade Transparent Protection
Designed for electronic potting requiring visual inspection. Cures to form a highly transparent, elastic protective layer, allowing direct observation of internal components, solder joints, and potential failures. Provides excellent moisture, insulation, and shock protection—ideal for automotive electronics, communication devices, and power modules.
Highlight 2: Precision Replication Expert
Ultra-low shrinkage (≤0.1%) and high flowability make it a premier material for precision molds. Perfectly replicates prototype details for jewelry miniatures, precision mechanical parts, or art molds, with easy demolding and stable, deformation-free dimensions.
Highlight 3: Safety Meets Performance
Food-grade platinum catalyst system ensures non-toxic, odorless, and environmentally safe use, suitable for direct food-contact molds. Withstands temperatures up to 250°C and offers good chemical stability, meeting stringent requirements from food processing to industrial manufacturing.
Detailed Technical Specifications
| Model | G815 | G820 | G825 | G830 | G840 |
| Color | High Transparency | ||||
| Hardness (Shore A°) | 15±2 | 20±2 | 25±2 | 30±2 | 40±2 |
| Mix Ratio (A:B) | 1:01 | 1:01 | 1:01 | 1:1 or 10:1 | 1:1 or 10:1 |
| Viscosity (mPa.s) | 9000±1000 | 12000±2000 | 14000±2000 | 16000±2000 | 45000±2000 |
| Tensile Strength (Mpa) | 3.2 | 3.2 | 3.3 | 3.3 | 3.1 |
| Tear Strength (kN/m） | 8±2 | 9±2 | 8±2 | 8±2 | 7±2 |
| Elongation (%) | 460 | 460 | 420 | 420 | 170 |
| Density (g/cm³) | 1.05 | 1.05 | 1.07 | 1.13 | 1.14 |
| Operation Time (min) | 20-40 | ||||
| Vulcanization Time (h) | 3-5h(25°C), 20-30min(60°C) | ||||
| Line Shrinkage Not Rate (%) | ≤0.1 | ||||
| Note: The color, viscosity, operation time and hardness after curing in the parameter table can be adjusted according to customer's demand. | |||||
How to Use
1.Compatibility Test: Always test compatibility with contact materials using a small batch first.
2.Precise Measurement: Weigh Parts A/B strictly by weight ratio (1:1 or 10:1), never by volume.
3.Thorough Mixing: Stir slowly and completely for 3-5 minutes until fully uniform.
4.Vacuum Degassing: Recommended for 1-3 minutes to achieve bubble-free results.
5.Timely Potting: Complete pouring within the 20-40 minute pot life.
6.Curing Options: 3-5 hours at room temperature, or accelerate at 60°C for 20-30 minutes.
Three Critical Notes
1.Avoid Inhibitor Contamination: Prevent contact with materials containing N, P, S, Sn, Pb (e.g., certain fluxes, PVC plasticizers) to avoid cure inhibition.
2.Pre-treat High-risk Surfaces: Clean solder joints, PVC wires with solvent or apply barrier primer.
3.Use Clean, Dedicated Tools: Ensure tools are clean and not contaminated by other silicones.
Shelf Life:
Unopened packaging at room temperature (25°C): 12 months. Finished silicone molds can be stored for up to six months without loss of performance.
Storage and Transportation:
1.Mold silicone should be stored at room temperature in a dry, sealed container. Avoid contact with water to prevent deterioration.
2.This product is classified as non-hazardous for transportation.
Applications & Project Gallery
Electronics & Electrical Potting

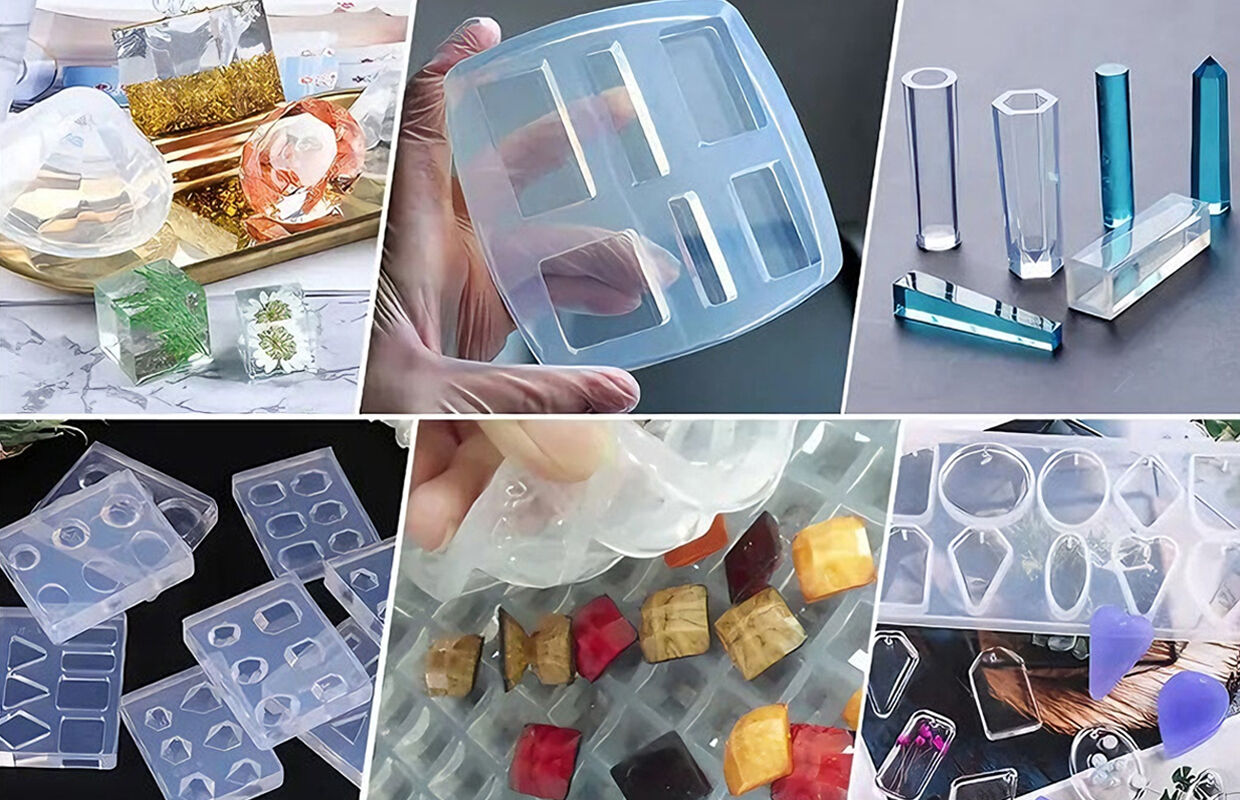

Precision Molds & Replication
Automotive & Transportation
New Energy & Energy Storage
Food-Grade Safe Applications
Industrial & Special Applications
OEM Customization Service
1.Customized formulation: Viscosity, flowability, curing time, hardness, transparency, color, and various functional additives. Can be adjusted according to needs to meet different industry application scenarios.
2.Packaging Customization: Multiple packaging sizes are available to suit your production scale, including 1kg, 5kg, 20kg, 25kg, and 200kg drums. All packaging follows international shipping standards to ensure safety and durability.
3.Private Label: Supports brand customization, including bottle label design, outer packaging printing, and logo labeling, helping brand owners and wholesalers quickly build their own brands and enter the market.
4.Supplies and Kits: Pre-mixed kits (such as resin + pigment + mold + tools, etc.) are provided according to your end product.
5.Color Matching and Functional Additives: Offers color matching services, supporting adjustments for black, red, yellow, and other colors.
6.Sample support: We support sample orders for performance testing before mass production. This ensures compatibility with your process, equipment, and application requirements.
7.Technical consultation and process guidance: Engineers provide one-on-one technical guidance on construction suggestions, curing conditions, mixing ratios,
Why Choose Our Customization Services?
1.Fast Response — Initial Technical Proposal Within 72 Hours
Once we receive your requirements, our engineering team will provide an initial formulation direction or technical recommendation within 72 hours. This significantly shortens your R&D cycle and speeds up time-to-market.
2. Cost Advantage — 15–30% Lower Than Trading Companies
As a factory with no middlemen, we offer highly competitive OEM pricing while maintaining strict quality standards. Ideal for distributors, factories, and brand owners seeking stable and scalable supply.
3. Confidentiality Guaranteed — 100% NDA Support, Formulations Never Disclosed
Every custom project can be secured with an NDA. We protect your formulations, data, and intellectual property with strict confidentiality standards and never share them with third parties.
4. End-to-End Control: One-Stop Service from Raw Materials to Delivery
Full in-house control over formulation, production, filling, private labeling, packaging, and logistics ensures consistent quality and stable supply.
5. 17+ Years of Material Manufacturing Expertise
With deep expertise in epoxy resin, PU resin, UV resin, liquid silicone rubber, and gypsum powder, we understand the performance needs of various industries including electronics, crafts, automotive, LED, molds, and flooring.
6.Technical Core: In-House R&D Center and Engineering Team
Experienced application engineers provide one-on-one support in formulation tuning, process optimization, and troubleshooting to ensure optimal performance.
7. Stable Quality — ISO9001 Certified Production
We follow strict quality control standards under ISO9001:2015. Every batch is traceable, stable, and tested to meet your specifications.
8. Fast Sampling & Flexible MOQ
We support rapid sample production and low-MOQ orders, reducing risks for new product launches, distributors, and factory procurement.
9. Brand Empowerment: Complete Private Label and Packaging Customization
Full white-label services including label design, multi-size packaging, and brand logo printing to help you build a professional brand image with ease.
10.Global Delivery: Scalable Production and International Logistics Network
Own large-scale production facilities paired with a mature global logistics network ensure stable output and on-time delivery worldwide.
If You Need Customized Packaging Or Other Specifications, Please Contact Us.
FAQ:
1.Q: Why does the contact surface (e.g., wire sheath) remain tacky after potting?
A: This is the most common issue, usually due to inhibitors in the contact material (e.g., plasticizers in PVC, rosin residue on solder joints). Solutions: a) Replace components with silicone-compatible materials (e.g., silicone wire); b) Apply a dedicated barrier primer to incompatible parts; c) Thoroughly clean contact surfaces with solvent before potting.
2.Q: What's the difference between 1:1 and 10:1 ratios for model G830?
A: The 10:1 ratio typically cures faster, with slightly shorter pot life and higher hardness. The 1:1 ratio is easier to operate and mix uniformly. Choose based on production pace and performance needs.
3.Q: Can it be used for thermal conductive potting?
A: Yes. This product is an excellent base for thermal potting compounds. Choose a suitable viscosity grade and add our thermal fillers (e.g., alumina, boron nitride) at a recommended ratio. We provide technical support.
4.Q: How to accelerate curing?
A: Increasing ambient temperature is most effective. At 60°C, cure time reduces to 20-30 minutes. Ensure even heating throughout.
