3:1 Highly Wear-Resistant 3D Flooring Coating Epoxy Resin

Professional Epoxy Resin Manufacturing Experts
Shenzhen Jianghe New Materials Technology Co., Ltd. is a leading developer and manufacturer of high-performance polymer materials, including epoxy resin, PU resin, UV resin, and liquid silicone rubber. As an integrated source factory combining R&D, production, and sales, we operate a 20,000㎡ modern production base in Dongguan, certified with ISO9001 and other international standards. Supported by advanced equipment, a dedicated R&D team, and a strict QC system, we deliver over 25,000 tons of stable, high-quality, and cost-effective products annually to clients in over 100 countries. We specialize in customized formulations and OEM/ODM services, empowering industries from crafts and furniture to electronics and composites with reliable material solutions.

Key Advantages & Features
Superior Surface Protection

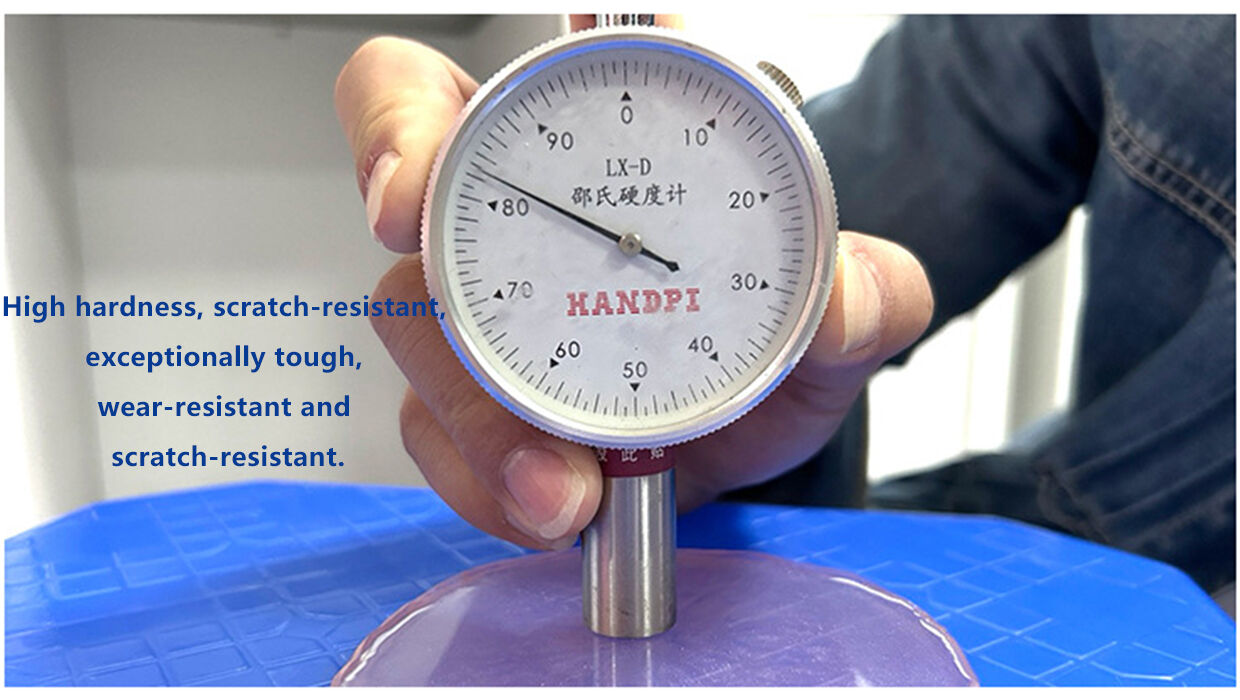

• High wear resistance: Shore D hardness 85, designed for high-traffic areas.

• Waterproof & moisture-proof: Water absorption <0.1%, effective moisture barrier.

• Chemical resistance: Withstands common cleaners and mild chemicals.

Exceptional Aesthetic Performance

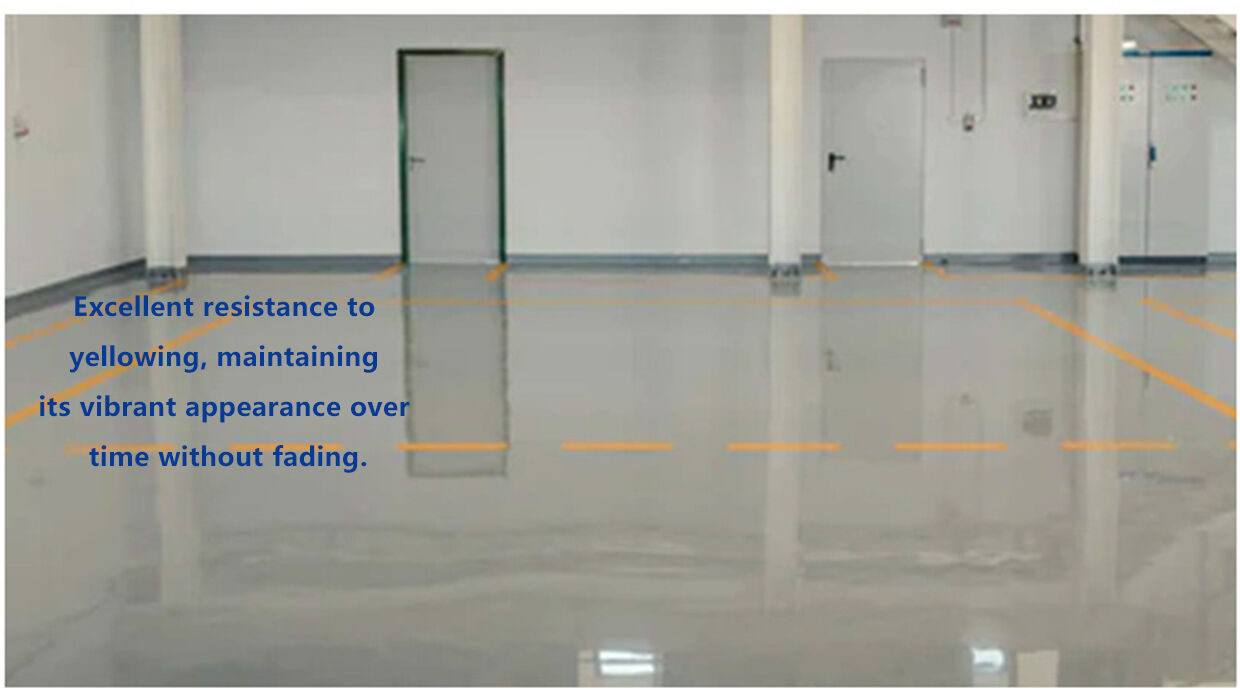

• Crystal clear transparency: Colorless transparent formula, non-yellowing and ripple-free.

• High-gloss finish: Mirror-like surface enhances product value.

• Self-leveling application: Automatic leveling for smooth surfaces without specialized tools.

Smart Application Experience

• Self-debubbling technology: Automatic bubble release minimizes manual intervention.

• Dual curing options: Room temperature cure (2-3 days) or heat acceleration.

• Wide temperature range: Service temperature 0-80°C for various environments.

Detailed Technical Specifications

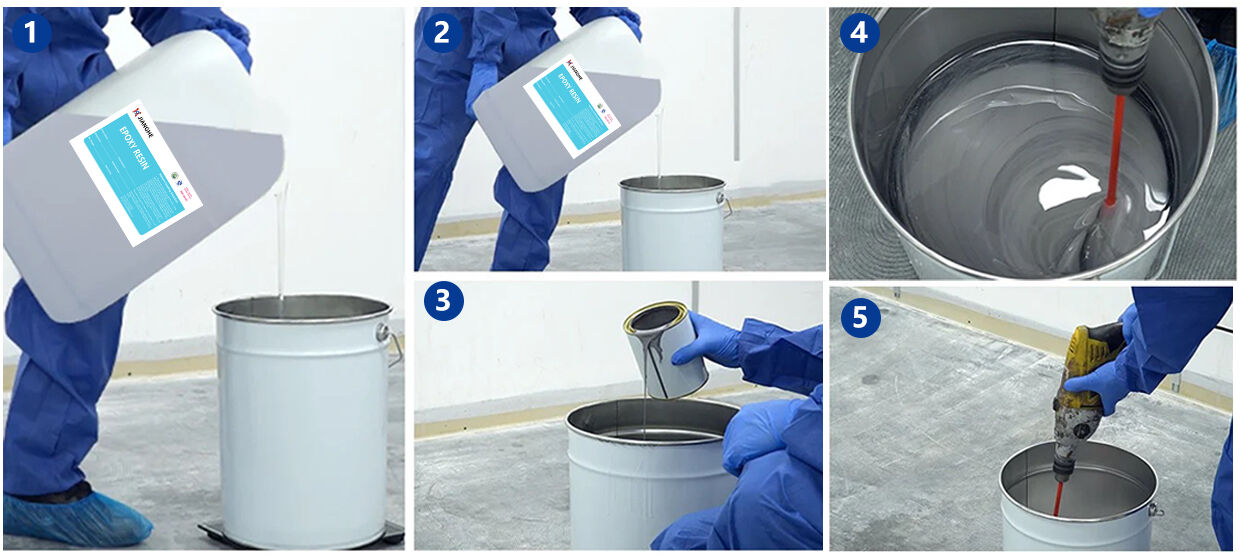

Usage Guide & Steps
1. Precise Measurement: Measure Parts A and B at 3:1 volume ratio.
2. Thorough Mixing: Pour Part B into Part A, mix clockwise for 3-5 mins, scraping container walls.
3. Resting for Debubbing: Let mixture sit for 3-5 mins for natural bubble escape (self-debubbing).
4. Application: Pour or cast resin onto substrate, spread with squeegee or roller. Reference usage: 280-350 g/m² (adjust per substrate).
5. Curing Option: Room temperature: 2-3 days full cure.
6.Post-Cleanup: Seal containers immediately after use to prevent moisture absorption.

Saffety, Handling & Storage Guidelines
1.For Safe Operation & Mixing

• Safety First: Operate in a well-ventilated area, away from ignition sources. Avoid skin and eye contact.

• Mix as Needed: Estimate quantity based on the 40-minute pot life to avoid waste.

• Adapt to Conditions: Preheat Component A if temperature <15°C; use heat-assisted curing if humidity >85% to prevent surface whitening.

• Safe Keeping: Keep out of reach of children.

2.Storage And Shelf Life

• Storage Conditions: Store in a cool, dry place below 25°C (77°F). Keep away from direct sunlight, heat sources, and humid environments.

• Packaging & Stability: The product has a shelf life of 6 months from the date of manufacture when stored unopened in its original container under recommended conditions. Once opened, reseal tightly and use as soon as possible. Do not leave exposed to air for extended periods.

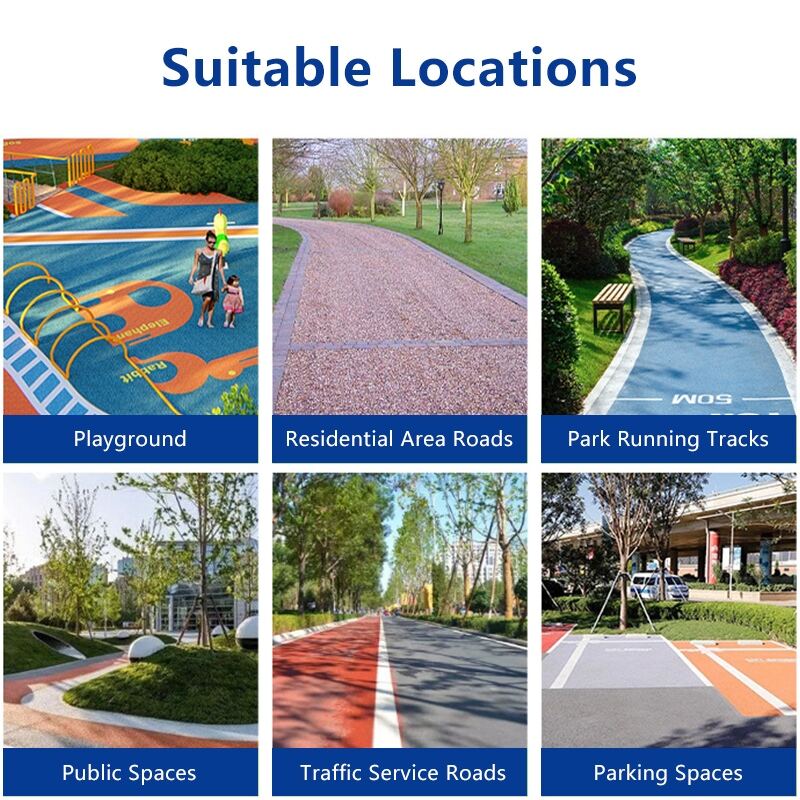

Applications & Project Gallery
Commercial Surface Protection

• Professional Floor Coatings: Wear-resistant protection for high-traffic areas in malls, showrooms, warehouses.
• Tabletop & Counter Protection: Scratch & heat-resistant coatings for restaurant bars, lab benches, reception desks.

• Industrial Floor Restoration: Old floor renewal, crack repair, integrated anti-corrosion & wear resistance.

High-End Decoration & Creative Design

• Artistic Resin Creations: River tables, resin paintings, 3D sculptures, craft encapsulation.

• Decorative Surface Finishes: Photo frame coatings, feature wall treatments, custom furniture beautification.

• Translucent Decoration Projects: Light-transmitting stone, illuminated backdrops, artistic lighting installations.

Electronics Protection & Encapsulation

• LED Industry Applications: Luminous letter potting, LED strip encapsulation, outdoor display protection.

• Electronic Component Protection: PCB conformal coating, sensor potting, insulation protection.

• Tamper-Evident Sealing: Precision instrument sealing, critical component anti-tampering protection.

Industrial Special Applications

• Mold Making & Casting: Transparent mold production, craft replication, sample protection.

• Architectural Restoration: Stone repair, wood reinforcement, concrete surface strengthening.

• Specialty Coatings: Anti-corrosion coating, wear-resistant coating, waterproof sealing layer.

OEM Customization Service
1.Customized formulation: Viscosity, flowability, curing time, hardness, transparency, color, and various functional additives (anti-yellowing, UV resistance, flexibility enhancement, flame retardancy, etc.) can be adjusted according to needs to meet different industry application scenarios.
2.Packaging Customization: Multiple packaging sizes are available to suit your production scale, including 1kg, 5kg, 20kg, 25kg, and 200kg drums. All packaging follows international shipping standards to ensure safety and durability.
3.Private Label: Supports brand customization, including bottle label design, outer packaging printing, and logo labeling, helping brand owners and wholesalers quickly build their own brands and enter the market.
4.Supplies and Kits: Pre-mixed kits (such as resin + resin pigment + mold + tools, etc.) are provided according to your end product.
5.Color matching and functional additives: Color matching services are supported, and special effects such as metallic, transparent, and pearlescent colors can be added, as well as various functional additives such as UV stabilizers, defoamers, scratch and abrasion resistant agents, and flame retardants.
6.Sample support: We support sample orders for performance testing before mass production. This ensures compatibility with your process, equipment, and application requirements.
7.Technical consultation and process guidance: Engineers provide one-on-one technical guidance on construction suggestions, curing conditions, mixing ratios, application processes, etc., to help you solve practical problems.

Why Choose Our Customization Services?
1.Fast Response — Initial Technical Proposal Within 72 Hours
Once we receive your requirements, our engineering team will provide an initial formulation direction or technical recommendation within 72 hours. This significantly shortens your R&D cycle and speeds up time-to-market.

2. Cost Advantage — 15–30% Lower Than Trading Companies
As a factory with no middlemen, we offer highly competitive OEM pricing while maintaining strict quality standards. Ideal for distributors, factories, and brand owners seeking stable and scalable supply.

3. Confidentiality Guaranteed — 100% NDA Support, Formulations Never Disclosed
Every custom project can be secured with an NDA. We protect your formulations, data, and intellectual property with strict confidentiality standards and never share them with third parties.

4. End-to-End Control: One-Stop Service from Raw Materials to Delivery
Full in-house control over formulation, production, filling, private labeling, packaging, and logistics ensures consistent quality and stable supply.

5. 17+ Years of Material Manufacturing Expertise
With deep expertise in epoxy resin, PU resin, UV resin, liquid silicone rubber, and gypsum powder, we understand the performance needs of various industries including electronics, crafts, automotive, LED, molds, and flooring.

6.Technical Core: In-House R&D Center and Engineering Team
Experienced application engineers provide one-on-one support in formulation tuning, process optimization, and troubleshooting to ensure optimal performance.

7. Stable Quality — ISO9001 Certified Production
We follow strict quality control standards under ISO9001:2015. Every batch is traceable, stable, and tested to meet your specifications.

8. Fast Sampling & Flexible MOQ
We support rapid sample production and low-MOQ orders, reducing risks for new product launches, distributors, and factory procurement.

9. Brand Empowerment: Complete Private Label and Packaging Customization
Full white-label services including label design, multi-size packaging, and brand logo printing to help you build a professional brand image with ease.

10.Global Delivery: Scalable Production and International Logistics Network
Own large-scale production facilities paired with a mature global logistics network ensure stable output and on-time delivery worldwide.

If You Need Customized Packaging Or Other Specifications, Please Contact Us.

FAQ:

1.Q: Can letting it sit for 3-5 minutes really eliminate all the bubbles?
A: 3-5 minutes resting with our low viscosity formula eliminates most bubbles. Remaining micro-bubbles may be from: ① rapid mixing; ② cold substrate; ③ high humidity. Solutions: use bubble roller or gentle heating (≤40°C). Bubble troubleshooting guide available.

2.Q: Does renovating old flooring require special treatment?
A: Yes. Standard process: ① deep clean; ② sanding (80-120 grit); ③ vacuum; ④ apply epoxy primer (available); ⑤ apply topcoat after 24h. Special kits for different old floors (tile, terrazzo, old epoxy).

3.Q: Can it be used on outdoor patios or balconies?
A: Yes, with conditions: ① must have shelter from rain; ② add anti-slip particles (available); ③ apply UV protector every 1-2 years. Best choice: our "All-Weather Epoxy Flooring System" for outdoor use.

4.Q: How do I calculate the required material quantity?
A: The standard formula is: Total Material (kg) = Length (m) × Width (m) × Coating Thickness (mm) × 1.13.

• Adjust according to different construction conditions:

• Smooth substrate, experienced operator: Use the formula as is.

• Rough, porous substrate: It is recommended to multiply the result by 1.05 (add 5% waste).

• Complex corners/edges, beginner operation: It is recommended to multiply the result by 1.1 (add 10% waste).


We offer free construction plan design and material list services.
